The front suspension control arms on Audi vehicles are designed to connect the wheel hub to the vehicle chassis, allowing controlled vertical movement over bumps while maintaining proper wheel alignment. Over time, the rubber bushings in these arms wear out, causing handling problems and uneven tyre wear.
Key Takeaways
| Topic | Key Information |
|---|---|
| Function | Control arms connect wheel hub to chassis, allowing controlled suspension movement |
| Common Symptoms | Clunking noises, uneven tyre wear, vague steering, failed roadworthy |
| Audi A4 Specifics | B5 and B6 models have 4 control arms per side (8 total at the front) |
| Replacement Tip | Always replace in pairs (both sides) and get a wheel alignment afterwards |
| Cost Savings | Used control arm kits cost R3,000-R6,000 vs R10,000-R20,000 new |
When Should You Replace Control Arms?
Replace your Audi's control arms when you notice:
- Clunking or knocking noises over bumps, especially from the front suspension
- Uneven tyre wear — particularly on the inner or outer edges
- Steering wander — the car pulls to one side or feels vague at highway speeds
- Visible bush damage — cracked, torn, or collapsed rubber bushings
- Failed roadworthy inspection — worn suspension components are a common failure point
A control arm (also known as a wishbone or A-arm) is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
Source: Wikipedia — Control Arm
Tools Required
- Jack and axle stands (never work under a car supported only by a jack)
- Socket set (typically 16mm, 18mm, 21mm)
- Ball joint separator or pickle fork
- Torque wrench
- Penetrating oil (PB Blaster or similar)
- New control arm (complete with bushings and ball joint)
Step-by-Step Removal Process
- Safely raise the vehicle and support it on axle stands. Remove the front wheel.
- Disconnect the ball joint from the steering knuckle. Remove the pinch bolt and use a ball joint separator.
- Remove the control arm mounting bolts from the subframe. These may be very tight — apply penetrating oil and allow time to soak.
- Remove the control arm from the vehicle. Note the orientation for installation.
- Install the new control arm in reverse order. Tighten all bolts to the specified torque.
- Get a wheel alignment after installation — this is essential for proper handling and tyre life.
Audi-Specific Notes

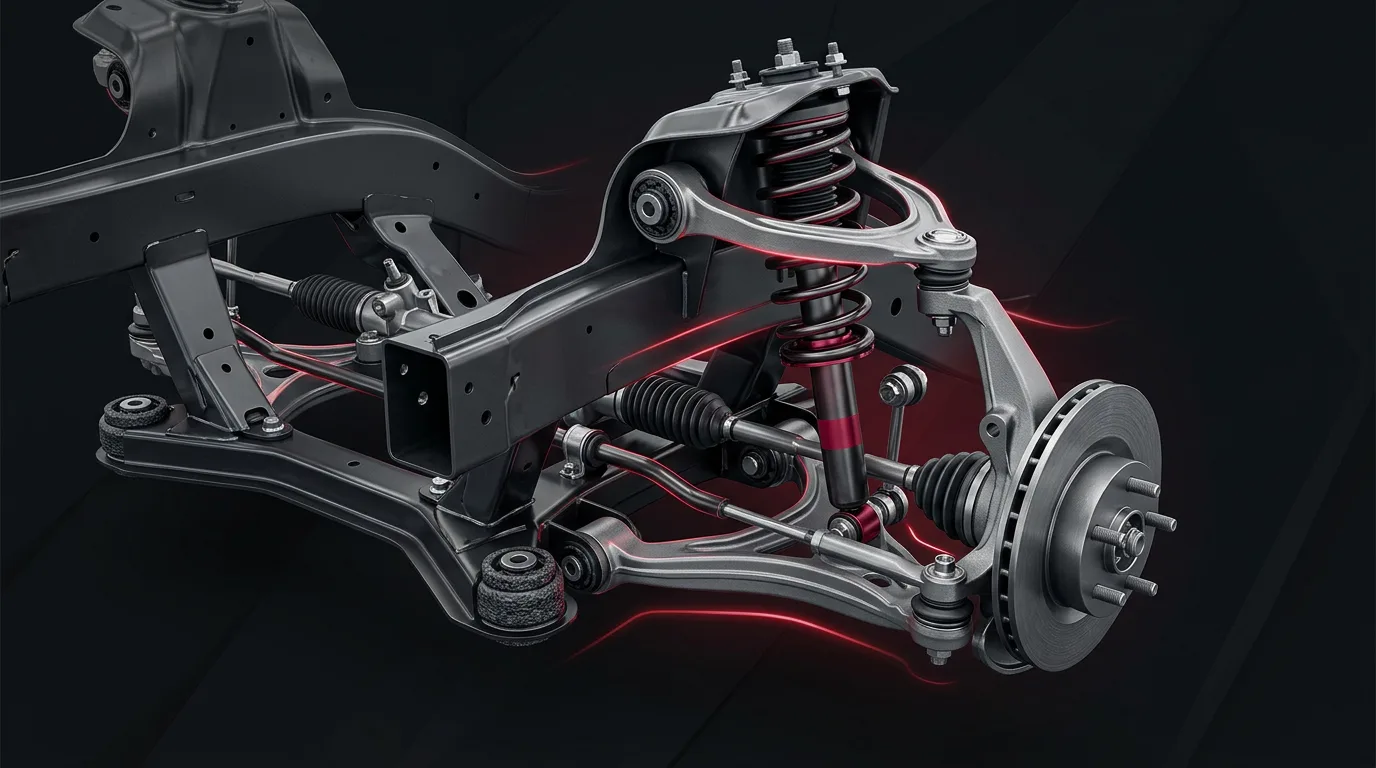

Audi vehicles, particularly the A4 and A6, use a multi-link front suspension with multiple control arms per side. Multi-link suspension designs use three or more lateral arms and one or more longitudinal arms, providing precise control over wheel geometry during suspension travel.
Source: Wikipedia — Multi-link Suspension
The B5 and B6 A4 famously have four control arms per side, making a complete front suspension refresh a significant job. The Q5 shares this same sophisticated suspension design with the A4 platform, so similar parts and procedures apply. South African road conditions — including potholes and speed bumps — accelerate bush wear, so regular inspection is essential. As one forum member noted: "Control arm wear is normal on these heavy cars. It's not all about the miles, but more so the length of time/years."
International Cost Comparison
Dealer pricing for control arm work can be eye-watering. One Audizine user was quoted $4,500 (approximately R82,000) from a dealer for bushing replacement alone at just 49,000 miles. Independent shops typically charge 40-60% less, with complete arm replacement running $800-$950 (R14,500-R17,000). Aftermarket kits from specialists like 034 Motorsport retail for $765-$850 (R14,000-R15,500).
Source: Audizine — Control Arm Bushings at 49k
RepairPal estimates for control arm replacement by model (USD, parts and labour):
| Model | Cost Range (USD) | Approximate ZAR |
|---|---|---|
| Audi A3 | $262-$353 | R4,800-R6,400 |
| Audi A4 | $988-$1,193 | R18,000-R21,700 |
| Audi A6 | $851-$1,014 | R15,500-R18,400 |
| Audi Q5 | $416-$531 | R7,500-R9,600 |
Source: RepairPal — Audi A4 Control Arm
We recommend replacing control arms in pairs (both sides) and doing an alignment afterwards. At Audi Parts SA, we stock complete control arm kits and suspension parts for all Audi models at competitive prices — a fraction of the dealer costs quoted above.
